Brief Introduction

In BenleyTechTM, a high-end TFT GF2 LCD display panel will be used for iPhone 8 Plus replacement screen production to win our returning aftermarket iPhone screen distributors. Combined with clients’ feedback, additional replacement component material quality control, and assembly technology improvement, our solution will save distributors’ time and money cost in the long run.

Compatibility

Perfect for screen repair & replacement for Apple iPhone 8 Plus models below.

  • iPhone 8 Plus Gold / Silver – A1864, A1897, A1898, and A1899

Key Features

  • Great Color Saturation & Brightness
  • P3 Wide Gamut Display
  • Enhanced Specular Reflector
  • Cold Glue Pressed Frame
  • OEM Quality Flexible FPC
  • Front Camera Frame and Earpiece Mesh Pre-installed

Specification Datasheet*)

Model Number TFT-iP8P-White
Bezel Color White
Diagonal 5.5”
Weight 68 g with LCD Steel Shield
Resolution 1920 x 1080, 401 ppi
Dimensions 155.75 x 75.4 x 2.76 mm
Active Area 120.960 x 68.240 mm
Brightness Typ. 480 ± 50 cd/m2
Contrast Ratio Typ. 1300 : 1
Color Temperature 7000 ± 1500 K
Polarizing Test Good Vision All Angles
Oleophobic Coating Yes, and More Durable
3D Touch Supported
True Tone No
Color Gamut Typ. 70.9%
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

* Please note that specific quality requirements are outlined in our production contract and confirmed specifications. This table does not replace or modify any terms or obligations outlined in said contract or specifications.

Screen Details

Below will show you our GF2 TFT LCD replacement screen details coming with the concept of improving both display performance and iPhone repairing convenience.

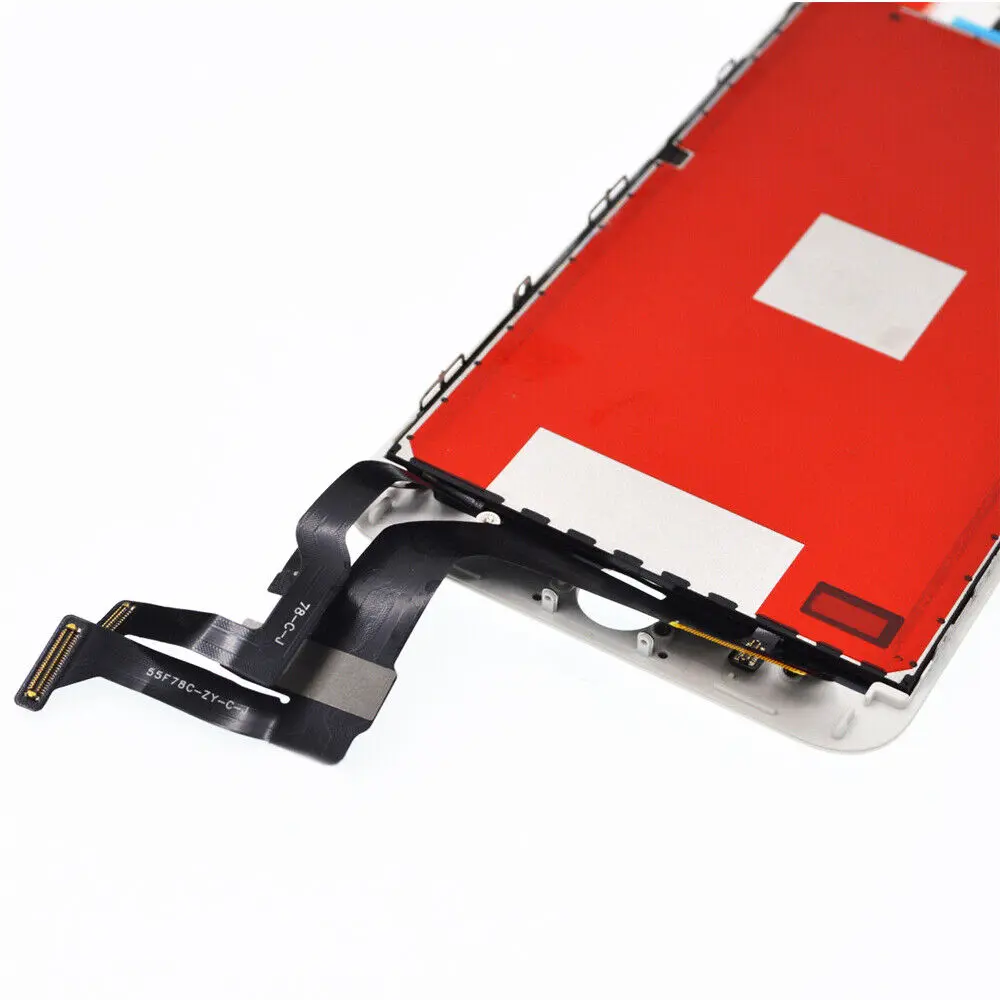

Flex Cable

High Quality Material Flex and Connectors

Oleophobic Coating

No Blurs, No Dust Left, Sensitive and Smooth Touch Response, High Color Resolution and Brightness, Wide Color Temperature, and Tempered H9 Glass.

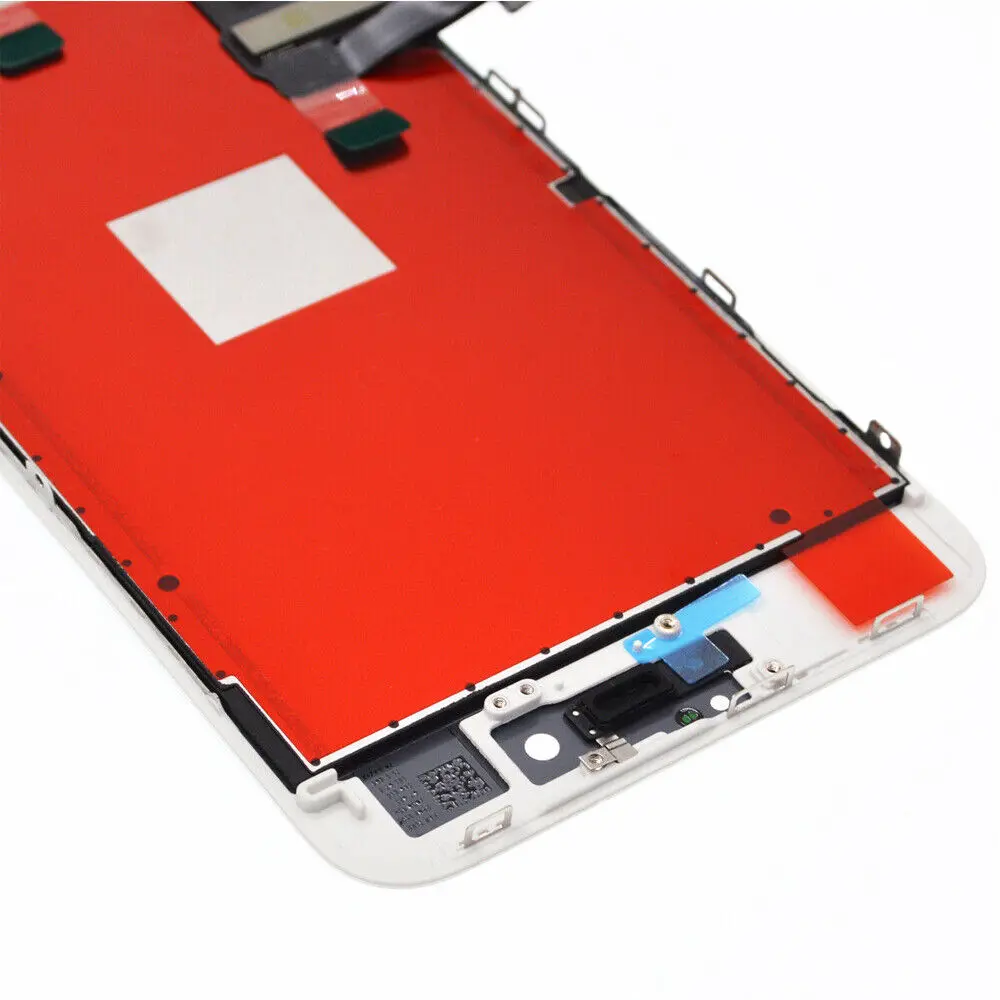

Strong Middle Frame and Small Parts Preinstalled

Small parts like the sensor holder, earpiece anti-dust mesh, and camera holder are preinstalled.

All Benleytech replacement LCD frames are with cold glue technology, strong and durable, with no fading.
