Brief Introduction
In BenleyTechTM, the aftermarket Soft OLED iPhone XS Max replacement screen comes with a brand-new tempered glass touchscreen digitizer, OLED assembly, and pre-installed steel plate. Its performance parameters are continually optimized and improved based on feedback from our replacement screen distributors.
Compatibility
Suitable for screen replacement and upgrade for Apple iPhone XS Max models A1921, A2101, A2102, A2103 and A2104.
Key Features
- High Color Saturation & Brightness
- G+F Technology,Perfect Fit, and Thinner Screen
- Oleophobic Coating
- OEM Grade 3D Touch
- OEM Grade FPC Connectors
- Enhanced Specular Reflector
- 360 Degree Polarized Lens
- Cold Pressed Frame
- Front Facing Camera Hold and Proximity Hold Installed
Specification Datasheet*)
| Model Number | OLED-iPXSM-Soft |
| Diagonal | 6.5” |
| Weight | 0.10107 kg |
| Dimensions | 155.35 x 75.20 x 1.90 mm |
| Active Area | 149.000 x 69.000 mm |
| Display Type | Soft OLED |
| Brightness | Typ. 500 ± 50 cd/m2 |
| Resolution | 2688 x 1242, 458ppi |
| Front Glass | 8H Front Glass, Anti-dust, and Fingerprint Oil |
| 360° Polarized Lens | Supported |
| Anti-glare | Supported |
| Oleophobic Coating | Yes, and More Durable |
| 3D Touch | Supported |
| True Tone | Supported |
| Color Gamut | Typ. 97.8% |
| Face ID | Support, and No Pop-up Warning |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
* Please note that specific quality requirements are outlined in our production contract and confirmed specifications. This table does not replace or modify any terms or obligations outlined in said contract or specifications.

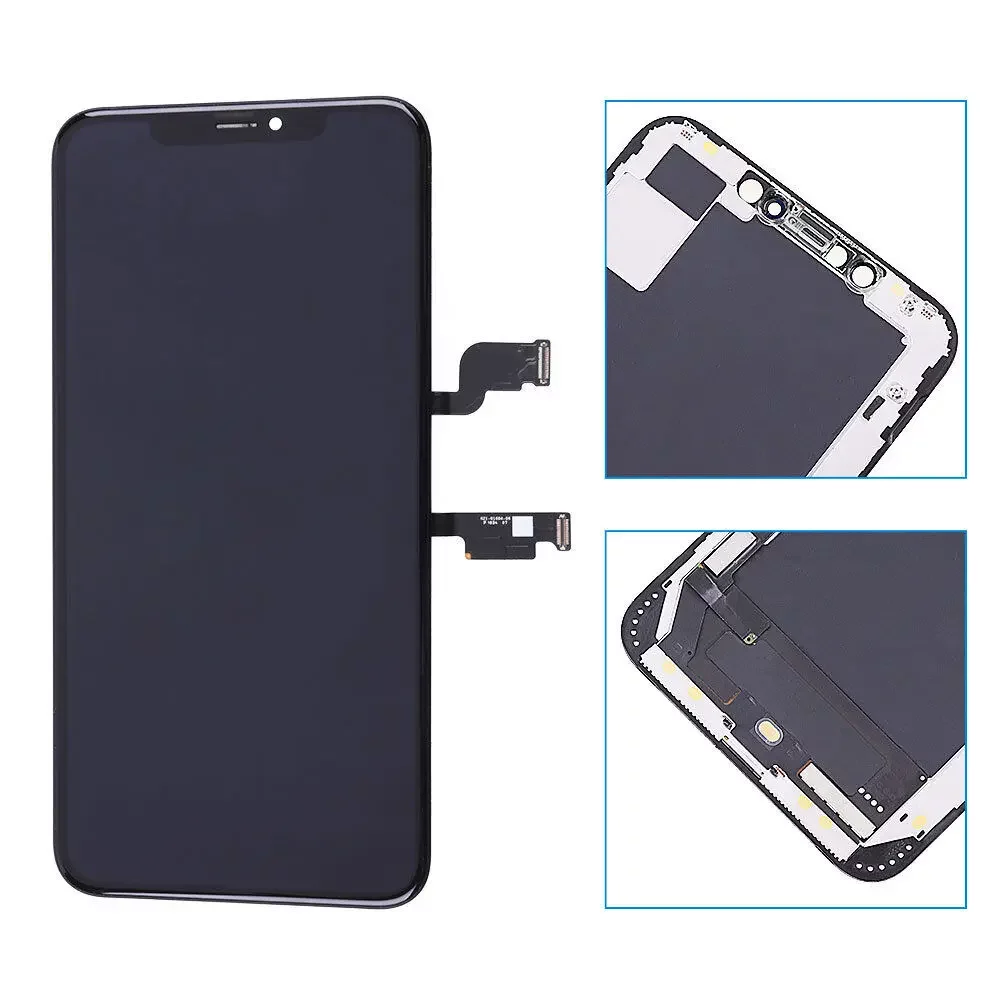

Screen Details
Below will show you our soft OLED iPhone XS Max replacement screen details coming with the concept of improving both display performance and iPhone repair convenience.
Flex Cable
High Quality Material Flex and Connectors
Exclusive Glue
No Blurs, No Dust Left, Strong and Durable
MIDDLE FRAME
Cold Glue Technology
Strong Glued Match Your Phone Perfectly
