Brief Introduction

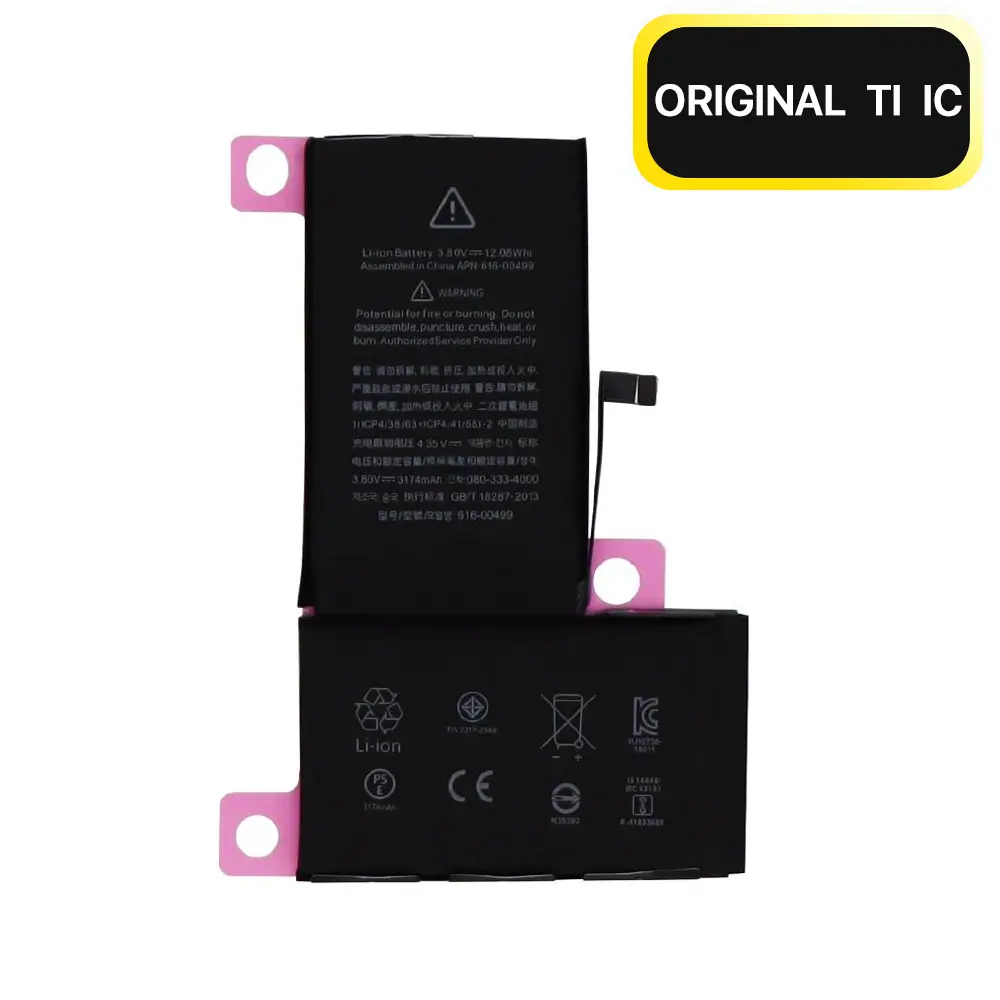

In BenleyTechTM, iPhone XS Max replacement battery with TI BMIC and Chinese branded cell built-in is produced under the latest advanced China smart manufacturing process and management systems1), bringing consistent and reliable performance for your iPhone. This premium third-party battery solution has earned numerous glowing reviews from our iPhone battery distributors.
Compatibility
Appliable to Battery Replacement and Upgrade for Apple iPhone XS Max models A1921, A2101, A2102, A2103, and A2104.
Key Features
- Texas Instruments Gas Gauge BMIC
- Chinese Branded Cell
- High and Standard Capacity Optional
- Overheat Protection
- Overcharge / Discharge Protection
- Over-current Protection
- Backside Adhesive Attached
Specification Datasheet2)
| Model | iPhone XS Max Battery- TI IC | |
| Battery Type | Li-ion Polymer | |
| Minimal Capacity | Standard Version | High Version |
| 3174 mAh | 3500 mAh | |
| Nominal Voltage | 3.80 V | 3.80 V |
| Charge Cut-off Voltage | 4.35 V | 4.35 V |
| Discharge Cut-off Voltage | 3.2 V | 3.2 V |
| Shipping Voltage | 3.85 to 3.98 V | 3.85 to 3.98 V |
| Initial Impedance | ≤ 35 mΩ (AC 1KHz) | ≤ 40 mΩ (AC 1KHz) |
| PCM Board | Original BMIC Made by TI | |
| Cycle Life | ≥ 600 cycles (Simulate Normal Use @0.5C Discharge Rate) | ≥ 400 cycles (Simulate Normal Use @0.5C Discharge Rate) |
| Charging Time | 1 – 3 hours | 1 – 3 hours |
| Standby Time | 5 – 8 days | 6 – 10 days |
| Certificate | UL/ FCC/ CE/ RoHS/ RCM/ IEC62133/ PSE/ UN38.3/ MSDS | |
| Safety | Double ICs Protection | |
| Working Temperature | -20°C to 60°C | -20°C to 60°C |
| Storage Temperature | -20°C to 45°C | -20°C to 45°C |
| Warranty | 12 Months | 12 Months |
| OEM / Trial Orders | Both Accepted | Both Accepted |
iPhone XS Max Battery Capacity
1) BenleyTechTM Battery Partners include VEKENTM, SINO WEALTHTM, Texas Instruments.
2) Please note that specific quality requirements are outlined in our production contract and confirmed specifications. This table does not replace or modify any terms or obligations outlined in said contract or specifications.
